Gigabyte Z790 AORUS ELITE AX | LGA 1700 | ATX 1xHDMI 1xDisplayPort | Matična plošča

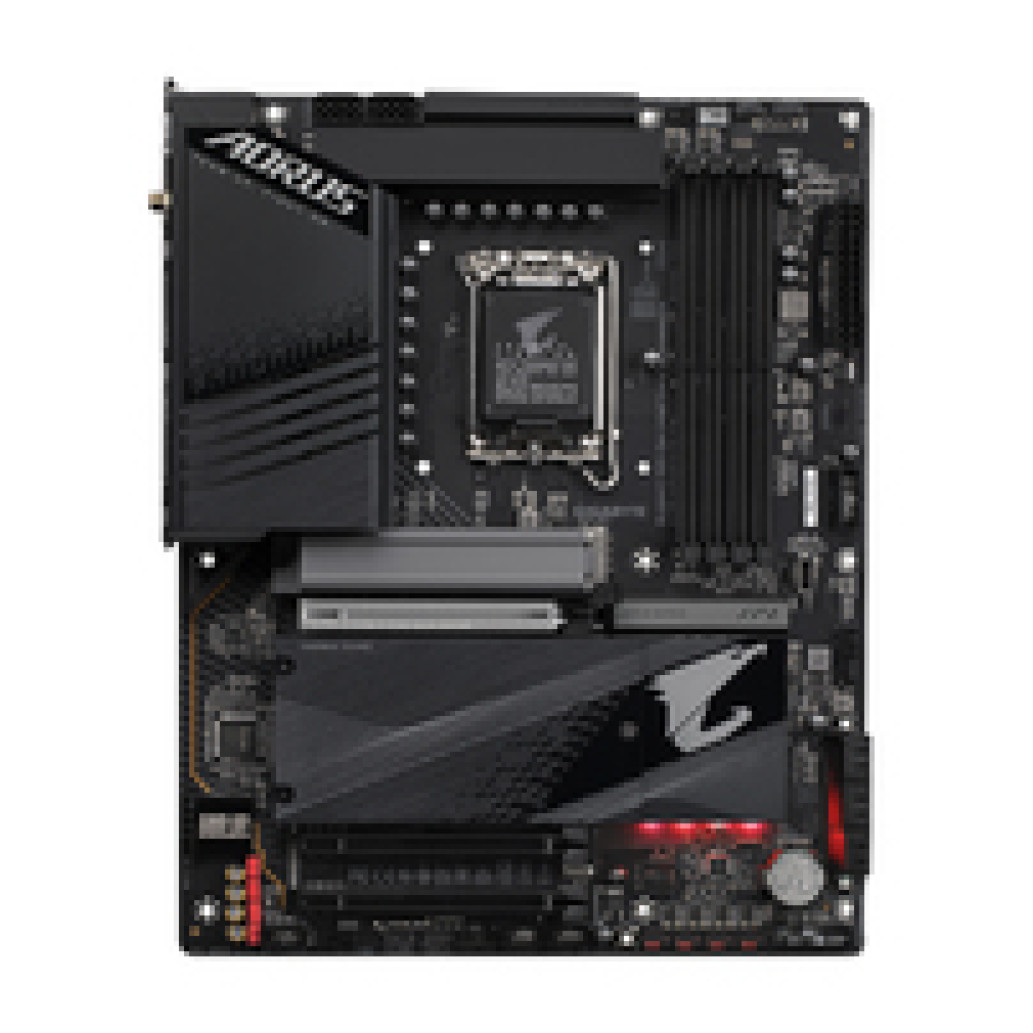

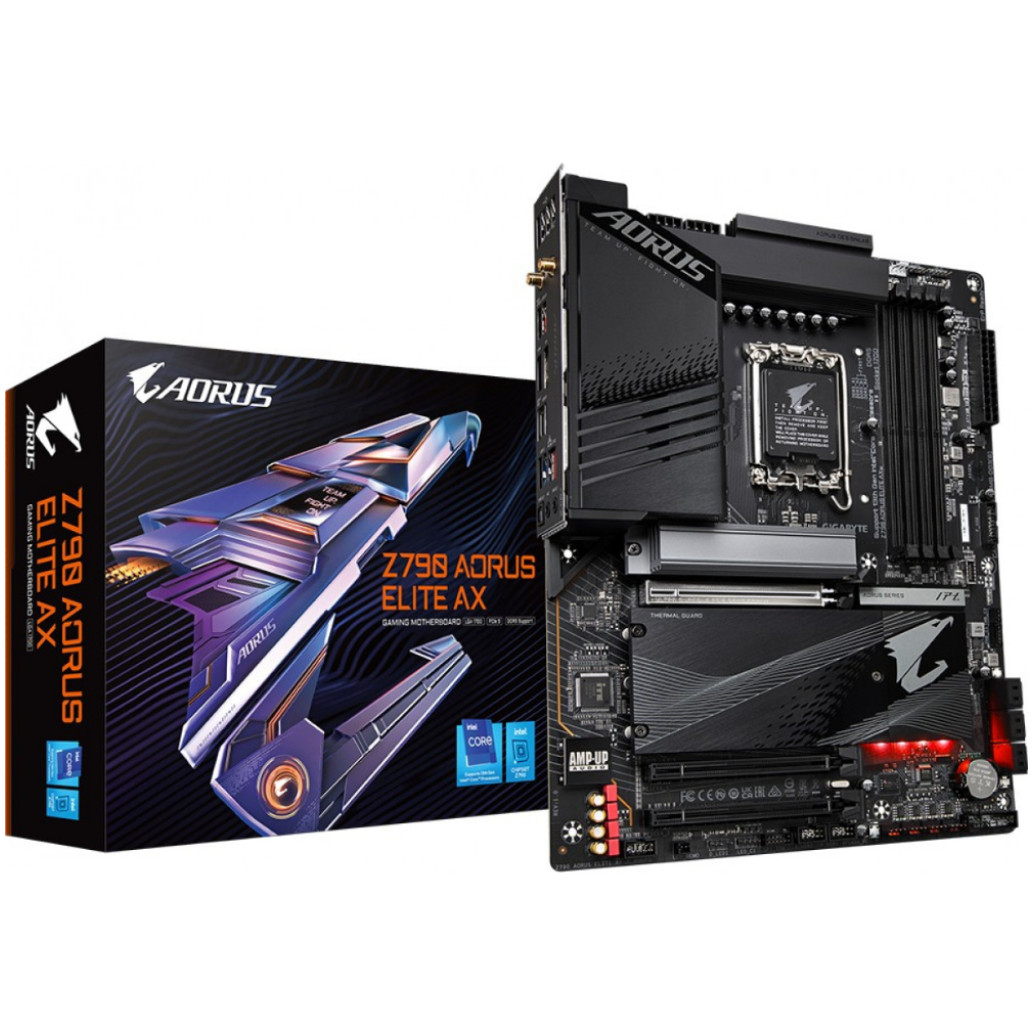

Matična plošča Gigabyte Z790 Aorus Elite AX – Vrhunska matična plošča

PODNOŽJE: INTEL LGA1700
ZA PROCESORJE:  Intel 12/13th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z790 Express
POMNILNIK:
4 x DDR5 (7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000MHz) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, Support for non-ECC / ECC Un-buffered DIMM (operate in non-ECC mode), Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
GRAFIKA: preko CPU
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCIe 5.0/4.0/3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (x4 mode)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) + Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz + BLUETOOTH 5.3
ZVOČNA KARTICA: Realtek High Definition Audio Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x USB Type-C port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
DODATNO:

iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10#kf
